🧲 How Transformers Work

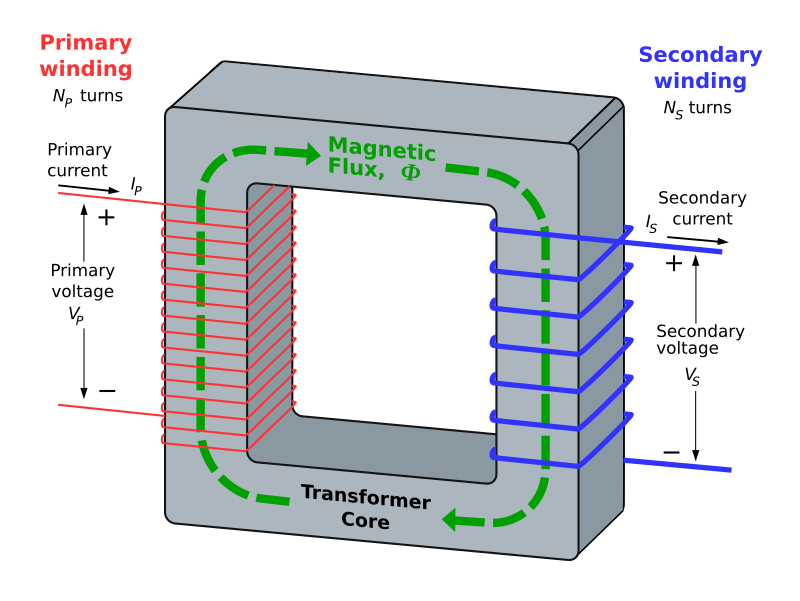

Figure 2: Transformer structure — AC in primary coil creates changing magnetic field in iron core, inducing voltage in secondary coil
A transformer consists of two coils of wire wrapped around a soft iron core. The input side is the primary coil and the output side is the secondary coil.
Step-by-Step: The Transformer Mechanism
- Alternating current (AC) flows through the primary coil
- The alternating current creates a changing magnetic field in the primary coil
- The soft iron core carries this changing magnetic field efficiently to the secondary coil
- The changing magnetic field in the secondary coil induces an alternating voltage (electromagnetic induction)
- The size of the induced voltage depends on the ratio of turns in each coil
Why AC, Not DC?
Transformers only work with alternating current. A direct current (DC) creates a constant magnetic field that never changes. A constant magnetic field cannot induce a voltage in the secondary coil — electromagnetic induction requires a changing field. This is why the National Grid uses AC throughout.
Quick Check: Why does the National Grid transmit electricity at high voltage rather than low voltage?
High voltage means low current (since P = IV, for same power, higher V means lower I). Power wasted in cables is P = I²R. Lower current means much less power wasted as heat in the transmission cables. This makes the system far more efficient.
