Quiz yourself on Magnetic FieldsGet your flashcardsBuild my revision planTrack my progress📖 The Invisible Force Field

🔬 Magnetic Fields and Field Lines
A magnetic field is a region in which a magnetic material experiences a force. We represent this using field lines — imaginary lines that show the direction and strength of the field.
- Field lines go from NORTH to SOUTH pole (outside the magnet)
- Arrows show the direction a free north pole would move
- Closely spaced lines = stronger magnetic field
- Lines never cross each other
- The field is strongest at the poles (lines are closest together)
Direction of the field: A compass needle always aligns with field lines — the north end points in the direction of the field (from N to S outside the magnet).
📊 Magnetic Field Patterns

Figure 2: Magnetic field lines around a bar magnet. Outside the magnet they run from N to S, closest together at the poles.
RULES for drawing field lines:
- Field lines go from NORTH to SOUTH (outside magnet)
- Arrows show direction a north pole would move
- Closer lines = STRONGER field
- Lines never cross
- Field strongest at the poles
📚 Magnetic Materials and Poles
Magnetic materials: Iron, steel, cobalt, nickel (and their alloys)
Permanent magnets:
- Produce their own magnetic field constantly
- Made from "hard" magnetic materials like steel
- Always have both a NORTH and SOUTH pole
Induced magnets:
- Become magnetic when placed in a magnetic field
- Made from "soft" magnetic materials like iron
- Lose magnetism when removed from field
- Always ATTRACTED to permanent magnets (never repelled)
Poles:
- Like poles REPEL (N-N or S-S)
- Unlike poles ATTRACT (N-S)
- You cannot isolate a single pole — cut a magnet and you get two smaller magnets!

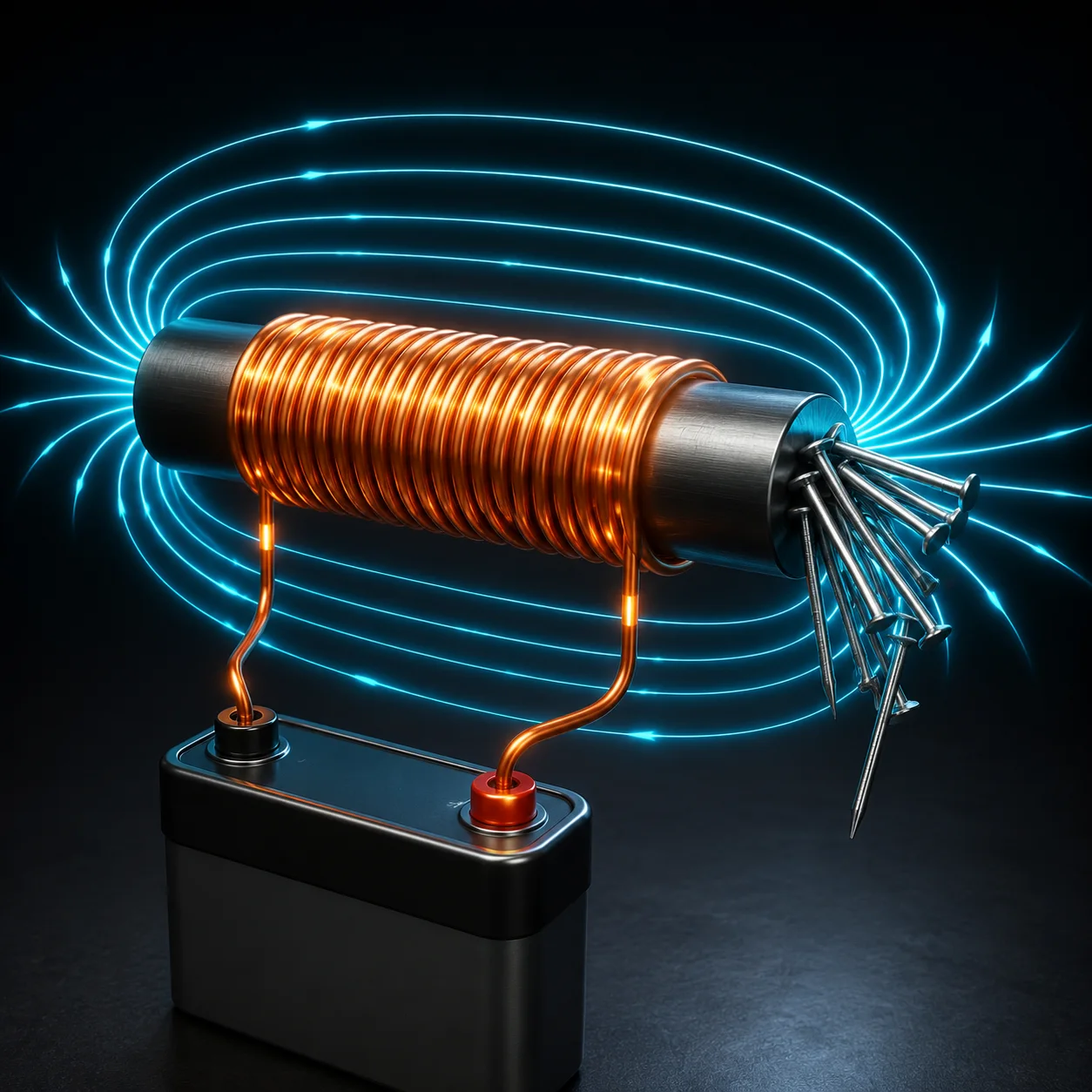

⚡ Electromagnets
What they are: Magnets created by electric current flowing through a coil of wire.
Advantages over permanent magnets:
- Can be switched ON and OFF
- Strength can be controlled by varying current
- Polarity can be reversed by reversing current
How to make a stronger electromagnet:
- Increase the current
- Increase the number of turns/coils
- Add a soft iron core (not steel — it would stay magnetised!)
Uses: Scrapyard cranes, MRI machines, electric bells, loudspeakers, relays
Quick Check: Why is a soft iron core used in an electromagnet rather than a steel core?
Soft iron is used because it is an induced (temporary) magnet — it becomes magnetised when current flows but loses its magnetism immediately when the current is switched off. Steel would retain its magnetism after the current stops (it's a hard magnetic material), making the magnet impossible to switch off.
⚙️ How Electric Current Creates a Magnetic Field
Any moving electric charge creates a magnetic field around it. When current flows through a wire, the moving electrons create circular magnetic field lines around the wire.
- Straight wire: Field lines are concentric circles around the wire. Use the right-hand grip rule — wrap your right hand around the wire with thumb pointing in current direction; your fingers curl in the direction of field lines.
- Coil (solenoid): The circular fields from each turn add together, creating a uniform field inside the coil that resembles a bar magnet — with a north and south pole at each end.
- Iron core: Soft iron inside the coil becomes an induced magnet, massively amplifying the total magnetic field strength.
This connection between electricity and magnetism (electromagnetism) is one of the most powerful ideas in physics — it underpins motors, generators, transformers, and wireless communication.
📖 Key Definitions
Magnetic field: A region in space where a magnetic material (or moving charge) experiences a force.
Permanent magnet: A material that produces its own persistent magnetic field (e.g. steel). Always has north and south poles.
Induced magnet: A material that becomes temporarily magnetic when placed in an external magnetic field (e.g. iron). Always attracted to a permanent magnet, never repelled.
Electromagnet: A magnet created by passing electric current through a coil of wire, usually with a soft iron core to amplify the field.
Magnetic flux density (B): A measure of the strength of a magnetic field. Units: Tesla (T). Higher B = stronger field = field lines closer together.
⚠️ Common Misconceptions
Misconception 1: "All metals are magnetic"
Only a few metals are magnetic: iron, steel, cobalt, nickel, and some of their alloys. Copper, aluminium, gold, and most common metals are NOT magnetic. You can test this by trying to attract metals with a magnet.
Misconception 2: "An induced magnet can be repelled by a permanent magnet"
Induced magnets are ALWAYS attracted to permanent magnets, never repelled. This is because the induced magnet always develops the opposite pole nearest to the permanent magnet, so the poles facing each other are always unlike (attracting).
Misconception 3: "Magnetic field lines show where the field is — there is no field between lines"
Field lines are just a visual tool. The magnetic field exists everywhere in the region around a magnet — the lines simply help us show direction and relative strength. The field between lines is real; we just don't draw every single line.
🧠 Memory Aid
Poles rule: "Like poles Repel — unlike poles attract." Think of people: similar personalities (like poles) clash and push each other away; opposites attract.
Field line rules — NACC:
- North to South (direction outside)
- Arrows show N-pole movement
- Closer = stronger
- Can't cross
Electromagnet strength — CIT:
- Current (increase it)
- Iron core (add one)
- Turns (add more)
Soft iron vs steel: "Soft iron = soft memory — forgets magnetism instantly. Steel = steel trap — holds magnetism forever."
🎓 Higher Tier: Magnetic Field Around a Current-Carrying Wire
The magnetic field around a long straight wire forms concentric circles. The direction follows the right-hand grip rule: point your right thumb in the direction of conventional current (positive to negative); your fingers curl in the direction of the field.
For a solenoid (coil of wire), the field inside is uniform and parallel to the axis — just like a bar magnet. The end where current flows anticlockwise (looking at it) is the north pole; clockwise is south.
Magnetic flux density B: Proportional to current (I) and number of turns per unit length. Adding a soft iron core multiplies B enormously because iron becomes strongly magnetised. B is measured in Tesla (T); 1 T is a very strong field (MRI machines use 1.5–3 T).
🎯 Exam Focus
Frequently Examined
This topic is on all four boards (AQA, Edexcel, OCR A and OCR B). The question types below are worth practising.
Magnetic fields are tested across a range of question types. Examined in Edexcel 1PH0/2 (Paper 2). Edexcel questions often use context-based scenarios — loudspeaker design, door locks, scrapyard cranes — so be ready to apply electromagnet principles to unfamiliar situations.
- Draw field lines (2 marks): Must include arrows (N to S outside magnet), show lines closer at poles, show repulsion/attraction pattern for two magnets.
- Electromagnet strength (2-3 marks): Three ways: more current, more turns, iron core. Explain why iron core works better than steel core.
- Permanent vs induced magnet (2 marks): Induced magnets are ALWAYS attracted, never repelled. They lose magnetism when removed from field.
- Uses of electromagnets (2 marks): Any named use with explanation of why the switchable/controllable nature is an advantage.
- "Suggest" questions: Edexcel 1PH0/2 may describe a novel electromagnetic device and ask you to suggest how its strength or direction could be changed — apply the three factors to the new context.
💡 Exam Tips for Magnetic Fields
🎯 Common Question Types:
- Draw and label field lines for a bar magnet (2 marks)
- Explain how to increase electromagnet strength (3 marks)
- Compare permanent and induced magnets (2-3 marks)
- Explain an application of an electromagnet (2-3 marks)
📝 Key Command Words:
- Draw: Show correct arrows (N to S outside), closer lines at poles, no crossing lines
- Explain: Give a reason — e.g. "iron is used because it loses magnetism when current stops"
- Compare: State similarities AND differences between permanent/induced
- Describe: Give the direction and pattern of the field
⚠️ Common Mistakes to Avoid:
- Drawing field lines going from S to N — always N to S outside the magnet
- Forgetting arrows on field lines
- Saying "steel core" instead of "soft iron core" for electromagnets
- Saying induced magnets can be repelled — they ALWAYS attract to permanent magnets
Quick Check: List three ways to increase the strength of an electromagnet and explain why a soft iron core is better than a steel core.
Three ways: (1) increase the current, (2) increase the number of turns/coils, (3) add a soft iron core. Soft iron is better than steel because it is an induced magnet — it becomes strongly magnetised when current flows but immediately loses its magnetism when the current is switched off. Steel would stay magnetised permanently, making it impossible to switch the electromagnet off.
